High Visibility Outdoor LED Cross Display with Green Lighting
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | Genilight |
| Model Number: | LED Cross Pharmacy Sign |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | $500.00/pieces 10-99 pieces |
| Packaging Details: | carton box |
| Payment Terms: | T/T, MoneyGram, PayPal, Western Union |
| Supply Ability: | 100000 Piece/Pieces per Month |
|
Detail Information |
|||
| Usage: | Outdoor | Color: | Green |
|---|---|---|---|
| Warranty: | 1 Year. | Tube Chip Color: | Single Color Or Tricolor |
| Port: | Xiamen | ||
Product Description
High Quality LED cross display
- Feature:
1.Can display current temperature(format:19 °C),time(format:11:00),date(format:01/08), graphics(format: jpg.bmp),animations(format:gif,crs) and free text messages.
2.Can display messages in English,French,German,ltalian,Spanish,Arabic and many other languages.
3.Operating software supports Windows2000, Vista,XP,etc.
4.User-friendly operating software allows user to edit/modify the text,draw/clear a pictuer freely,increase/decrease the speed,enlarge the characters height,make text scroll in horizontal or vertical,select among tens of font sets,All operations can be done very easily and conveniently!
5.When creating a new animation,user can open existing flash files(GIF format) to get animations and just click OK to displsy,or he can also modify them before display.
6.On/Off option allows messages to display at predetermined hours and minutes.
7.Set Bright option allows adjusting the brightness at predeterminde time.
8.Thin and slim display body,front access maintenance.Programmable with wire or wireless control.
9. Waterproof of design for outdoor use: outside metal frame can be sprayed in color of customer’s choice.
- Specifications
|
1. LED chip size |
red:9mil,green/blue/amber/white:12mil |
|
2. View Angle |
H:120°(+60/-60),V:60°(+30/-30) |
|
3. Viewing Distance |
≥20m |
|
4. Input voltage (AC) |
110V~240V |
|
5. Input power frequency (Hz) |
50HZ~60HZ |
|
6. Control Mode |
Asynchronous |
|
7. Drive Mode |
1/4 scan constant current (1200×1200 is static scan) |
|
8. Communication Mode |
RS232,RF Wireless, WIFI(Optional)---The default configuration(RF Wireless) |
|
9. Control distance |
RS232:<100m,RF Wireless:<800m |
|
10. Display content |
Animation/Graphics/Word/Time/Temperature |
|
11. Languages |
English, French, Spanish ,Greek,Russian and Italian |
|
12. Operating system |
Windows (2000/XP/Vista/Win7) |
|
13. Frame Material |
Steel(cold rolled iron) frame.500*500,800*800,1000*1000 can do aluminum frame |
|
14. Working Temperature(°C) |
-45~+65(for working) |
|
15. Working Humidity |
10%~95%RH |
|
16. Life span |
100,000 hours |
|
17.Certificate |
CE-EMC,CE-LVD,ROHS |
|
Model Description |
SC 520×520 (Two sides) |
SC 800×800 (One or two sides) |
SC 1000×1000 (One or two sides) |
SC 1024×1024 (Two sides) |
SC 1200×1200 (One or two sides) |
|
Pixel pitch |
10mm |
16mm |
20mm |
16mm |
25mm |
|
Pixel configuration |
One led (red/green/blue) |
One led (red/green/blue) |
One led (red/green/blue) |
One led (red/green/blue) |
One led (red/green/blue) |
|
Display Pixels (one/two sides) |
--- / 2560 dots |
1280 / 2560 dots |
1280 / 2560 dots |
---/ 6144 dots |
1280 / 2560 dots |
|
Brightness |
≥6000CD |
||||
|
IP grade |
IP65 |
||||
|
Max. Power Cons. (one/two sides) |
--- / 115W |
58 / 115W |
58 / 115W |
--- / 273W |
128 / 255W |
|
Cabinet Size(cm) (one/two sides) |
--- / 89×54×10 |
82×82×10 / 118×82×10 |
101×101×10 / 137×101×10 |
--- / 144×108×10 |
125×125×10 / 161×125×10 |
|
Packing Meas.(cm) (one/two sides) |
--- / 95×61×24 |
91×91×19 / 125×89×24 |
110×110×19 / 144×107×24 |
--- / 152×117×24 |
134×134×19 / 169×136×24 |
|
Net Weight(kg) (one/two sides) |
--- / 15 |
16 / 26 |
25 / 38 |
--- / 48 |
38 / 58 |
|
Gross Weight (kg) (one/two sides) |
--- / 28 |
31 / 43 |
45 / 60 |
--- / 85 |
64 / 88 |

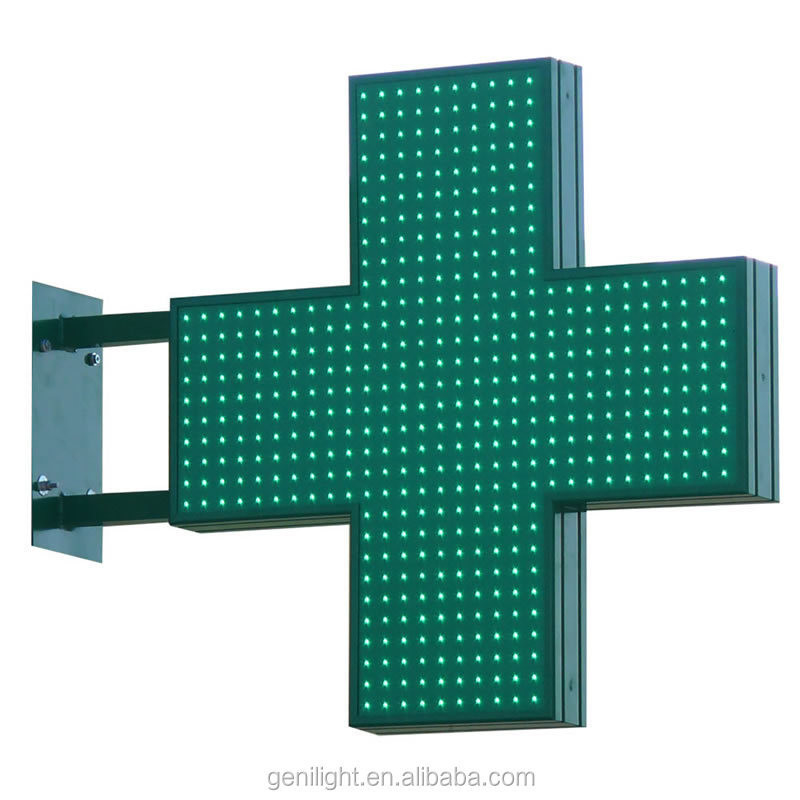

Picture:
