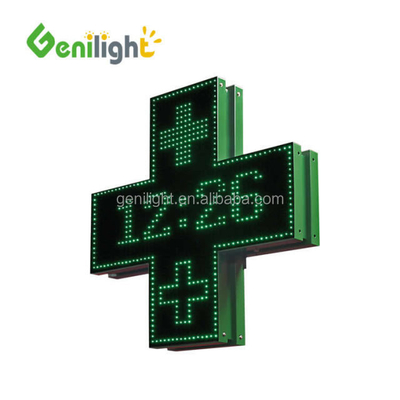

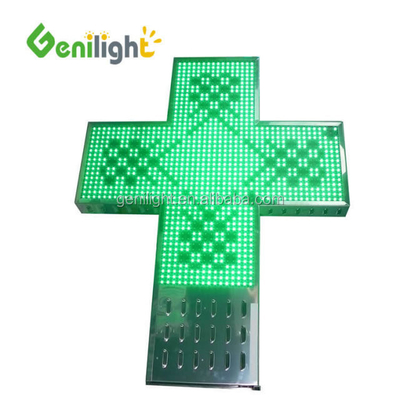

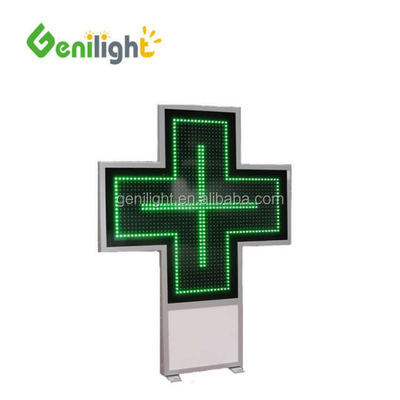

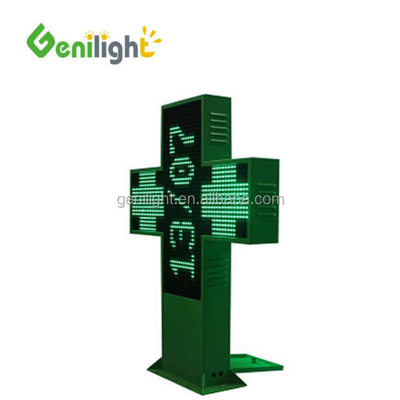

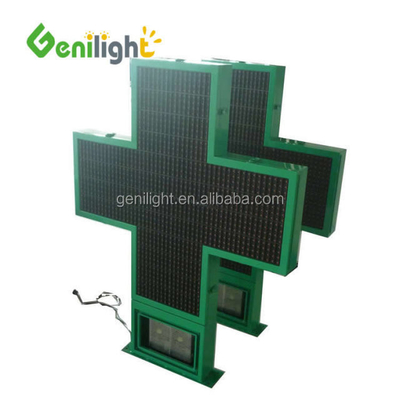

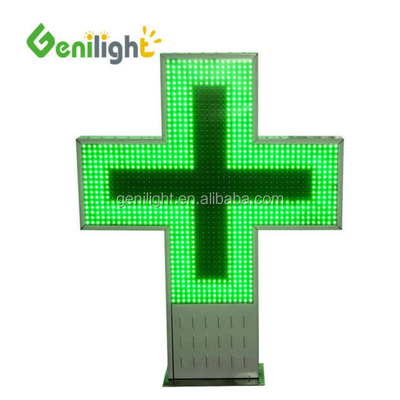

Outdoor Green LED Pharmacy Sign P10 P16 P20 P25 RF WIFI 1024*1024mm Brightness ≥6000CD
Product Details:
| Place of Origin: | Other Country |
| Brand Name: | Genilight |
| Model Number: | SC 800x800-P10(Two sides) |
Payment & Shipping Terms:
| Price: | $1,300.00/pieces 1-499 pieces |
|---|---|
| Packaging Details: | carton box,wooden box,or packing as your request<br>Outdoor double sided display green color LED cross pharmacy sign with RF communication |
| Payment Terms: | T/T, MoneyGram, PayPal, Western Union |
| Supply Ability: | 100000 Piece/Pieces per Month LED cross medical pharmacy display business commercial sign |
|
Detail Information |
|||
| Application: | Outdoor | Color: | G |
|---|---|---|---|
| Panel Size: | 800*800 | Use: | Advertising Publish, Medical Treatment |
| Screen Dimension: | 520*520mm,800*800mm, 1000*1000mm, 1024*1024mm, 1200*1200mm Etc.. | Pixels: | 10mm, 16mm, 20mm,25mm |
| Pixel Configuration: | 1G | Tube Chip Color: | Red,Blue,Green,Yellow,White Etc.. |
Product Description
3D Pharmacy Sign P10 P16 P20 P25 RF WIFI Outdoor Green Led pharmacy
Specifications
|
1. LED chip size
|
|
red:9mil,green/blue/amber/white:12mil
|
|
||
|
2. View Angle
|
|
H:120°(+60/-60),V:60°(+30/-30)
|
|
||
|
3. Viewing Distance
|
|
≥20m
|
|
||
|
4. Input voltage (AC)
|
|
110V~240V
|
|
||
|
5. Input power frequency (Hz)
|
|
50HZ~60HZ
|
|
||
|
6. Control Mode
|
|
Asynchronous
|
|
||
|
7. Drive Mode
|
|
1/4 scan constant current (1200×1200 is static scan)
|
|
||
|
8. Communication Mode
|
|
RS232,RF Wireless, WIFI(Optional)---The default configuration(RF Wireless)
|
|
||
|
9. Control distance
|
|
RS232:<100m,RF Wireless:<800m
|
|
||
|
10. Display content
|
|
Animation/Graphics/Word/Time/Temperature
|
|
||
|
11. Languages
|
|
English, French, Spanish ,Greek,Russian and Italian
|
|
||
|
12. Operating system
|
|
Windows (2000/XP/Vista/Win7)
|
|
||
|
13. Frame Material
|
|
Steel(cold rolled iron) frame.500*500,800*800,1000*1000 can do aluminum frame
|
|
||
|
14. Working Temperature(°C)
|
|
-45~+65(for working)
|
|
||
|
15. Working Humidity
|
|
10%~95%RH
|
|
||
|
16. Life span
|
|
100,000 hours
|
|
||
|
17.Certificate
|
|
CE-EMC,CE-LVD,ROHS
|
|
||
520*520mm led cross sign(two side)
P10-SC-520*520 (single color)
1. Pixel Pitch:10mm
2. Pixel configuration: one led (red/green/blue)
3. Display color: pure green,pure red,green with two lines blue fringe,red with two lines green fringe…
4. Display Pixels:2560 dots(for two sides, one side is 1280)
5. Brightness: 6000CD
6. IP grade:IP65
7. MAX Power Consumption: 115W
8. Cabinet Size(mm): 890*540*100
9. Packing Meas.(mm): 950*610*240
10. Net Weight(kg):15
11. Gross Weight(kg):28
P10-TC-520*520 (two color)
1. Pixel Pitch:10mm
2. Pixel configuration: 1R1G or 1G1B or 1R1B
3. Display color: pure green,pure red,green with two lines blue fringe,red with two lines green fringe…
4. Display Pixels:2560 dots(for two sides, one side is 1280)
5. Brightness: 6000CD
6. IP grade:IP65
7. MAX Power Consumption: 200W
8. Cabinet Size(mm): 890*540*100
9. Packing Meas.(mm): 950*610*240
10. Net Weight(kg):15
11. Gross Weight(kg):28
P10-FC-520*520 (full color)
1. Pixel Pitch:10mm
2. Pixel configuration: 1R1G1B
3. Display color: pure green,pure red,green with two lines blue fringe,red with two lines green fringe…
4. Display Pixels:2560 dots(for two sides, one side is 1280)
5. Brightness: 6000CD
6. IP grade:IP65
7. MAX Power Consumption:300W
8. Cabinet Size(mm): 890*540*100
9. Packing Meas.(mm): 950*610*240
10. Net Weight(kg):15
11. Gross Weight(kg):28
800*800mm led cross sign(two side)
P16-SC-800*800 (single color)
1. Pixel Pitch:16mm
2. Pixel configuration: one led (red/green/blue)
3. Display color: pure green,pure red,green with two lines blue fringe,red with two lines green fringe…
4. Display Pixels:2560 dots(for two sides, one side is 1280)
5. Brightness: 6000CD
6. IP grade:IP65
7. MAX Power Consumption: 145W
8. Cabinet Size(mm): 1176×820×100
9. Packing Meas.(mm): 1250×890×240
10. Net Weight(kg):26
11. Gross Weight(kg):43
P16-TC-800*800(two color)
1. Pixel Pitch: 16mm
2. Pixel configuration: three leds (2R1G/2R1B/1B1G)
3. Display color: red,green,yellow or green,blue,cyan
4. Display Pixels: 2560 dots(for two sides, one side is 1280)
5. Brightness: 6500CD
6. IP grade: IP65
7. MAX Power Consumption: 200W
8. Cabinet Size(mm): 1176×820×100
9. Packing Meas.(mm): 1250×890×240
10. Net Weight(kg): 27
11. Gross Weight (kg): 43
P16-TC-800*800(full color)
1. Pixel Pitch: 16mm
2. Pixel configuration: three leds (2R1G/2R1B/1B1G)
3. Display color: red,green,yellow or green,blue,cyan
4. Display Pixels: 2560 dots(for two sides, one side is 1280)
5. Brightness: 6500CD
6. IP grade: IP65
7. MAX Power Consumption: 200W
8. Cabinet Size(mm): 1176×820×100
9. Packing Meas.(mm): 1250×890×240
10. Net Weight(kg): 27
11. Gross Weight (kg): 43
1000*1000mm led cross sign(two side)
P20-SC-1000*1000
1. Pixel Pitch: 20mm
2. Pixel configuration: one led (red/green/blue)
3. Display color: pure green,pure red,green with two lines blue fringe,red with two lines green fringe…
4. Display Pixels: 2560 dots (for two sides, one side is 1280)
5. Brightness: 5500CD
6. IP grade: IP65
7. MAX Power Consumption: 145W
8. Cabinet Size(mm): 1368×1010×100
9. Packing Meas.(mm): 1440×1070×240
10. Net Weight(kg): 38
11. Gross Weight(kg): 60
P20-TC-1000*1000
1. Pixel Pitch: 20mm
2. Pixel configuration: three leds (2R1G/2R1B/1B1G)
3. Display color: red,green,yellow or green,blue,cyan
4. Display Pixels: 2560 dots(for two sides, one side is 1280)
5. Brightness: 6000CD
6. IP grade: IP65
7. MAX Power Consumption: 200W
8. Cabinet Size(mm): 1368×1010×100
9. Packing Meas.(mm): 1440×1070×240
10. Net Weight(kg): 38
11. Gross Weight (kg): 60
P20-FC-1000*1000
1. Pixel Pitch: 20mm
2. Pixel configuration: 1R1G1B
3. Display color: red,green,yellow or green,blue,cyan
4. Display Pixels: 2560 dots(for two sides, one side is 1280)
5. Brightness: 6000CD
6. IP grade: IP65
7. MAX Power Consumption: 200W
8. Cabinet Size(mm): 1368×1010×100
9. Packing Meas.(mm): 1440×1070×240
10. Net Weight(kg): 38
11. Gross Weight (kg): 60
10024*1024mm led cross sign(two side)
P16-SC-1024*1024
1. Pixel Pitch: 16mm
2.Pixel configuration: one led (red/green/blue)
3.Display color: pure green,pure red,green with eight lines blue fringe,red with eight lines green fringe…
4.Display Pixels: 6144 dots(for two sides, one side is 3072)
5.Brightness: 6000CD
6.IP grade: IP65
7.MAX Power Consumption: 273W
8.Cabinet Size(mm): 1432×1076×100
9.Packing Meas.(mm): 1520×1170×240
10.Net Weight(kg): 48
11. Gross Weight (kg): 85
P16-TC-1024*1024
1. Pixel Pitch: 16mm
2.Pixel configuration: (2R1G/2R1B/1B1G)
3.Display color: pure green,pure red,green with eight lines blue fringe,red with eight lines green fringe…
4.Display Pixels: 6144 dots(for two sides, one side is 3072)
5.Brightness: 6000CD
6.IP grade: IP65
7.MAX Power Consumption: 545W
8.Cabinet Size(mm): 1432×1076×100
9.Packing Meas.(mm): 1500×1130×240
10.Net Weight(kg): 48
11. Gross Weight (kg): 85
P16-FC-1024*1024
1. Pixel Pitch: 16mm
2.Pixel configuration: 1R1G1B
3.Display color: pure green,pure red,green with eight lines blue fringe,red with eight lines green fringe…
4.Display Pixels: 6144 dots(for two sides, one side is 3072)
5.Brightness: 6000CD
6.IP grade: IP65
7.MAX Power Consumption: 720W
8.Cabinet Size(mm): 1432×1076×100
9.Packing Meas.(mm): 1500×1130×240
10.Net Weight(kg): 48
11. Gross Weight (kg): 85
Packaging Details: carton box, wooden box or as your request.
Delivery Time: 15days, please check with us
