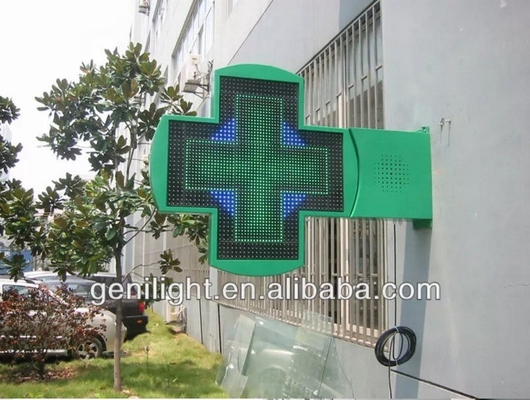

38kg/58kg Net Weight Waterproof Full Color Double Sides LED Pharmacy Cross Display
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | Genilight |
| Model Number: | FC 1200*1200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pieces |
|---|---|
| Price: | $1,600.00/pieces 5-9 pieces |
| Payment Terms: | T/T, MoneyGram, PayPal, Western Union |
|
Detail Information |
|||
| Application: | Outdoor | Supplier Type: | Original Manufacturer, ODM, OEM |
|---|---|---|---|
| Use: | Advertising Publish, Retail Store, Medical Treatment | Screen Dimension: | 1200*1200mm |
| Tube Chip Color: | Full Color | Cabinet Size(cm) (one/two Sides): | 125*125*10 / 161*125*10 |
| Display Pixels (one/two Sides): | 1280 / 2560 Dots | Max. Power Cons. (one/two Sides): | 305 / 610W |
| Net Weight(kg) (one/two Sides): | 38 / 58 | Operating System: | Windows (2000/XP/Vista/Win7) |
Product Description
|
Product Description
|
|
|
|
Model
|
FC 1200×1200
(One or two sides) |
|
|
Pixel pitch
|
25mm
|
|
|
Pixel configuration
|
2R1G1B
|
|
|
Display Pixels
|
1280 / 2560 dots
|
|
|
Brightness
|
≥6000CD
|
|
|
IP grade
|
IP65
|
|
|
Max. Power Cons.
|
305 / 610W
|
|
|
Cabinet Size(cm) (one/two sides)
|
125×125×10 / 161×125×10
|
|
|
Net Weight(kg) (one/two sides)
|
38 / 58
|
|
|
Gross Weight (kg) (one/two sides)
|
64 / 88
|
|
|
Exact Spec Information
|
|
|
|
LED chip size
|
red:9mil,green/blue/amber/white:12mil
|
|
|
View angle
|
H:120°(+60/-60),V:60°(+30/-30)
|
|
|
Viewing distance
|
≥20m
|
|
|
Input voltage (AC)
|
110V~240V
|
|
|
Input power frequency (Hz)
|
50HZ~60HZ
|
|
|
Control mode
|
Asynchronous
|
|
|
Drive mode
|
1/4 scan constant current (1200*1200 is static scan)
|
|
|
Communication mode
|
RS232,RF Wireless, WIFI(Optional)---The default configuration(RF Wireless)
|
|
|
Control distance
|
RS232:<100m,RF Wireless:<800m
|
|
|
Display content
|
Animation/Graphics/Word/Time/Temperature
|
|
|
Languages
|
English, French, Spanish ,Greek,Russian and Italian etc.
|
|
|
Operating system
|
Windows (2000/XP/Vista/Win7)
|
|
|
Frame material
|
Steel(cold rolled iron) frame;500*500,800*800,1000*1000 can do aluminum frame
|
|
|
Working temperature(°C)
|
-45~+65(for working)
|
|
|
Working humidity
|
10%~95%RH
|
|
|
Life span
|
100,000 hours
|
|
|
Certificate
|
CE-EMC,CE-LVD,ROHS etc.
|
|
Product Feature:
1.Can display current temperature(format:19 °C),time(format:11:00),date(format:01/08), graphics(format: jpg.bmp),animations(format:gif,crs) and free text messages.
2.Can display messages in English,French,German,ltalian,Spanish,Arabic and many other languages.
3.Operating software supports Windows2000, Vista,XP,etc.
4.User-friendly operating software allows user to edit/modify the text,draw/clear a pictuer freely,increase/decrease the speed,enlarge the characters height,make text scroll in horizontal or vertical,select among tens of font sets,All operations can be done very easily and conveniently!
5.When creating a new animation,user can open existing flash files(GIF format) to get animations and just click OK to display,or he can also modify them before display.
6.On/Off option allows messages to display at predetermined hours and minutes.
7.Set Bright option allows adjusting the brightness at predetermined time.
8.Thin and slim display body,front access maintenance.Programmable with wire or wireless control.
9. Waterproof of design for outdoor use: outside metal frame can be sprayed in color of customer’s choice.
|
Model Description
|
GLT-FC 520×520
(Two sides)
|
GLT- FC 800×800
(One or two sides)
|
GLT- FC 1000×1000
(One or two sides)
|
GLT- FC 1024×1024
(Two sides)
|
GLT- FC 1200×1200
(One or two sides)
|
||||
|
Pixel pitch
|
10mm
|
16mm
|
20mm
|
16mm
|
25mm
|
||||
|
Pixel configuration
|
1R1G1B
|
1R1G1B
|
1R1G1B
|
1R1G1B
|
1R1G1B
|
||||
|
Display Pixels (one/two sides)
|
--- / 2560 dots
|
1280 / 2560 dots
|
1280 / 2560 dots
|
---/ 6144 dots
|
1280 / 2560 dots
|
||||
|
Brightness
|
≥6000CD
|
|
|
|
|
||||
|
IP grade
|
IP65
|
|
|
|
|
||||
|
Max. Power Cons. (one/two sides)
|
--- / 300W
|
150 / 300W
|
150 / 300W
|
--- / 720W
|
305 / 610W
|
||||
|
Cabinet Size(cm) (one/two sides)
|
--- / 89×54×10
|
82×82×10 / 118×82×10
|
101×101×10 / 137×101×10
|
--- / 144×108×10
|
125×125×10 / 161×125×10
|
||||
|
Packing Meas.(cm) (one/two sides)
|
--- / 95×61×24
|
91×91×19 / 125×89×24
|
110×110×19 / 144×107×24
|
--- / 152×117×24
|
134×134×19 / 169×136×24
|
||||
|
Net Weight(kg) (one/two sides)
|
--- / 15
|
16 / 26
|
25 / 38
|
--- / 48
|
38 / 58
|
||||
|
Gross Weight (kg) (one/two sides)
|
--- / 28
|
31 / 43
|
45 / 60
|
--- / 85
|
64 / 88
|
||||
Genilight Optoelectronic Technology Co., Ltd. have a strong R&D staff who are professional in the areas of LED application,electronics, illu mination, structure, LED special power supply, technical design and so on. With industrious hardworking, we have developed super high brightness LED with low degradation and launched many series of LED lighting products, including Series universal for both Indoor and Outdoor application, Series for led fluorescent light, Series for led high power spotlight, Series for led bulb, Series for led sign, Series for led strip,Series for led modules etc.
Our Services:
1.OEM is available.
2.Our all produces are with 1-3 years warranty.
3.Our trademessage is 24 hours on line.
4.We will reply your email asap .
1. Do you accept custom design?
Yes, any design and any size are available.
2. Is the product safe?
Yes ,output is 12V voltage is Safe to touch and clean.
3. Do you have any certification for the products?
Yes ,our products and adapter are with CE-EMC, CE-LVD, ROHS etc certification.
4. How long have you produced led sign?
We have more than 5 years experience in led sign.
5.What payment are you accept?
We accept payment method: T/T ,Western Union, Money Gram,Paypal,ect.
Dear friends,thanks for browsing our products. Any questions, please don't hesitate to tell me.
