Green LED PHARMACY Cross Display Eye-Catching Illuminated Sign for Attracting Customers
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | Genilight |
| Model Number: | TC 1300x1300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pieces |
|---|---|
| Price: | $800.00/pieces >=5 pieces |
| Payment Terms: | T/T, MoneyGram, PayPal, Western Union |
|
Detail Information |
|||
| Color: | G | Use: | Advertising Publish, Medical Treatment |
|---|---|---|---|
| Pixel Configuration: | 1G1B | IP Grade: | IP65 |
| Max. Power Cons.: | 545W | ||
Product Description
Green Color Attract Customers Green Led PHARMACY Cross Display Illuminated Sign
TC 1300x1300 pharmacy cross:
Other size of two color LED pharmacy cross :
|
Model Description |
TC 520×520 (Two sides) |
TC 800×800 (One or two sides) |
TC 1000×1000 (One or two sides) |
TC 1024×1024 (Two sides) |
TC 1200×1200 (One or two sides) |
|
Pixel pitch |
10mm |
16mm |
20mm |
16mm |
25mm |
|
Pixel configuration |
1R1G or 1G1B or 1R1B |
2R1G or 1G1B or 2R1B |
2R1G or 1G1B or 2R1B |
2R1G or 1G1B or 2R1B |
2R1G or 1G1B or 2R1B |
|
Display Pixels |
--- / 2560 dots |
1280 / 2560 dots |
1280 / 2560 dots |
---/ 6144 dots |
1280 / 2560 dots |
|
Brightness |
≥6000CD |
||||
|
IP grade |
IP65 |
||||
|
Max. Power Cons. |
--- / 200W |
100 / 200W |
100 / 200W |
--- / 545W |
255 / 510W |
|
Cabinet Size(cm) |
--- / 89×54×10 |
82×82×10 / 118×82×10 |
101×101×10 / 137×101×10 |
--- / 144×108×10 |
125×125×10 / 161×125×10 |
|
Packing Meas.(cm) |
--- / 95×61×24 |
91×91×19 / 125×89×24 |
110×110×19 / 144×107×24 |
--- / 152×117×24 |
134×134×19 / 169×136×24 |
|
Net Weight(kg) |
--- / 15 |
16 / 26 |
25 / 38 |
--- / 48 |
38 / 58 |
|
Gross Weight (kg) |
--- / 28 |
31 / 43 |
45 / 60 |
--- / 85 |
64 / 88 |
Specifications
|
1. LED chip size |
red:9mil,green/blue/amber/white:12mil |
|
2. View Angle |
H:120°(+60/-60),V:60°(+30/-30) |
|
3. Viewing Distance |
≥20m |
|
4. Input voltage (AC) |
110V~240V |
|
5. Input power frequency (Hz) |
50HZ~60HZ |
|
6. Control Mode |
Asynchronous |
|
7. Drive Mode |
1/4 scan constant current (1200×1200 is static scan) |
|
8. Communication Mode |
RS232,RF Wireless, WIFI(Optional)---The default configuration(RF Wireless) |
|
9. Control distance |
RS232:<100m,RF Wireless:<800m |
|
10. Display content |
Animation/Graphics/Word/Time/Temperature |
|
11. Languages |
English, French, Spanish ,Greek,Russian and Italian |
|
12. Operating system |
Windows (2000/XP/Vista/Win7) |
|
13. Frame Material |
Steel(cold rolled iron) frame.500*500,800*800,1000*1000 can do aluminum frame |
|
14. Working Temperature(°C) |
-45~+65(for working) |
|
15. Working Humidity |
10%~95%RH |
|
16. Life span |
100,000 hours |
|
17.Certificate |
CE-EMC,CE-LVD,ROHS |

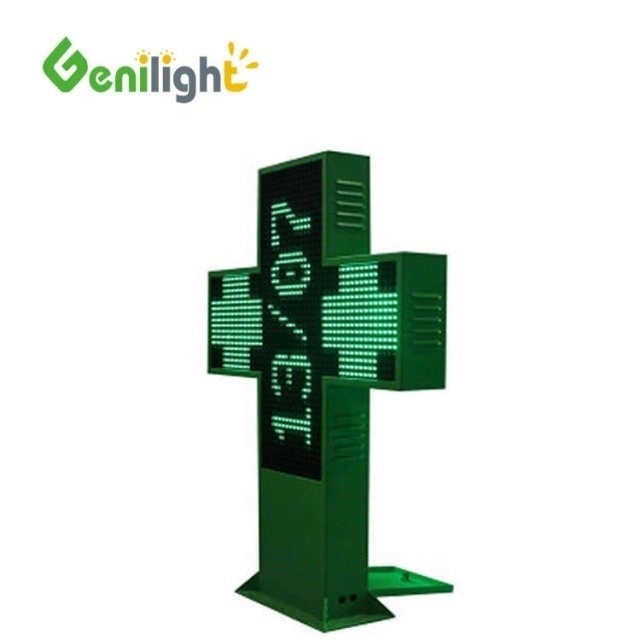

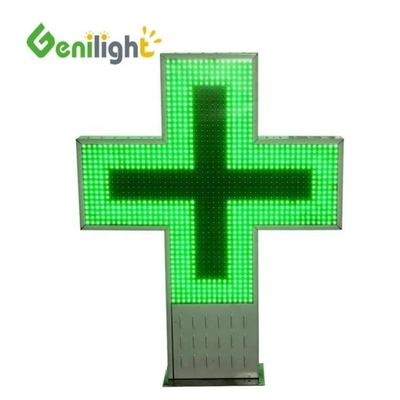

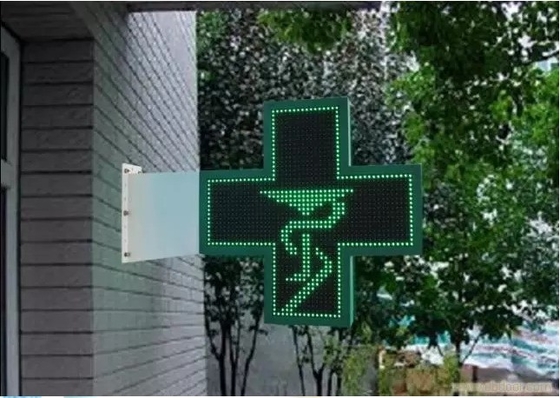

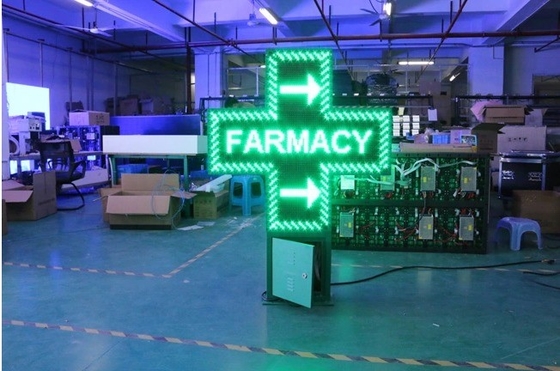

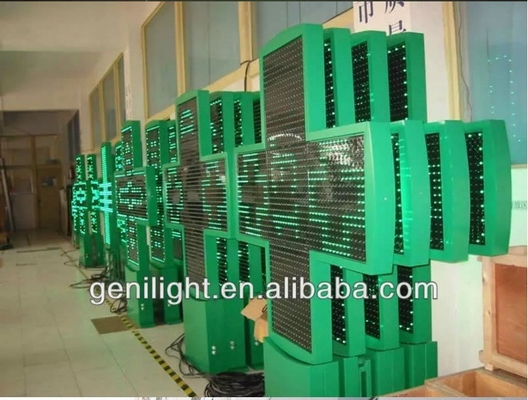

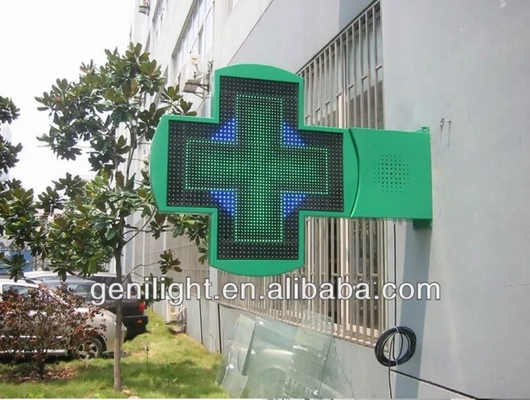

Picture:
Control mode:
Product Feature:
1.Can display current temperature(format:19 °C),time(format:11:00),date(format:01/08), graphics(format: jpg.bmp),animations(format:gif,crs) and free text messages.
2.Can display messages in English,French,German,ltalian,Spanish,Arabic and many other languages.
3.Operating software supports Windows2000, Vista,XP,etc.
4.User-friendly operating software allows user to edit/modify the text,draw/clear a pictuer freely,increase/decrease the speed,enlarge the characters height,make text scroll in horizontal or vertical,select among tens of font sets,All operations can be done very easily and conveniently!
5.When creating a new animation,user can open existing flash files(GIF format) to get animations and just click OK to displsy,or he can also modify them before display.
6.On/Off option allows messages to display at predetermined hours and minutes.
7.Set Bright option allows adjusting the brightness at predeterminde time.
8.Thin and slim display body,front access maintenance.Programmable with wire or wireless control.
9. Waterproof of design for outdoor use: outside metal frame can be sprayed in color of customer’s choice.
Applications:
1.OEM is available.
2.Our all produces are with 1-3 years warranty.
3.Our trademessage is 24 hours on line.
4.we will reply your email asap .
Notes:LED parmacy cross would be certificated with CE LVD RoHS etc ,more certificates would be satified as your reuqest.
1. Do you accept custom design?
Yes, any design and any size are available.
2. Is the product safe?
Yes ,output is 12V voltage is Safe to touch and clean.
3. Do you have any certification for the products?
Yes ,our products and adapter are with CE-EMC, CE-LVD, ROHS etc certification.
4. How long have you produced led sign?
We have more than 5 years experience in led sign.
5.What payment are you accept?
We accept payment method: T/T ,Western Union, Money Gram,Paypal,ect.
Genilight Optoelectronic Technology Co., Ltd. have a strong R&D staff who are professional in the areas of LED application,electronics, illu mination, structure, LED special power supply, technical design and so on. With industrious hardworking, we have developed super high brightness LED with low degradation and launched many series of LED lighting products, including Series universal for both Indoor and Outdoor application, Series for led fluorescent light, Series for led high power spotlight, Series for led bulb, Series for led sign, Series for led strip,Series for led modules etc.
